內存就是線性結構的字節數組，對于32位平臺而言，這個字節數組的大小是2^32＝4294967296個字節，地址編號為：00000000-FFFFFFFF。

數據和代碼加載到內存，對存儲設備的讀取是按塊（transer block，幾個字節、幾十、幾百、幾千個字節不等）進行的。在CPU內部，對數據的處理是以字長為單位進行的。

1 空間局部性與時間局部性

Well-written computer programs tend to exhibit good locality. That is, they tend to reference data items that are near other recently referenced data items or that were recently referenced themselves. This tendency, known as the principle of locality, is an enduring concept that has enormous impact on the design and performance of hardware and software systems.

一個編寫良好的計算機程序常常具有良好的局部性（locality)。也就是，它們傾向于引用最近引用過的數據項的附近的數據項，或者最近引用過的數據項本身。這種傾向性，被稱為局部性原理（principle of locality）。局部性原理是一個持久的概念，對硬件和軟件系統的設計和性能都有著極大的影響。

Locality is typically described as having two distinct forms: temporal locality and spatial locality. In a program with good temporal locality, a memory location that is referenced once is likely to be referenced again multiple times in the near future. In a program with good spatial locality, if a memory location is referenced once, then the program is likely to reference a nearby memory location in the near future.

局部性通常有兩種不同的形式：時間局部性（temporal locality) 和空間局部性（spatiallocality)， 在一個具有良好時間局部性的程序中，被引用過一次的內存位置很可能在不遠的將來再被多次引用。在一個具有良好空間局部性的程序中，如果一個內存位置被引用了一次，那么程序很可能在不遠的將來引用附近的一個內存位置。

Programmers should understand the principle of locality because, in general, programs with good locality run faster than programs with poor locality. All levels of modern computer systems, from the hardware, to the operating system, to application programs, are designed to exploit locality. At the hardware level, the principle of locality allows computer designers to speed up main memory accesses by introducing small fast memories known as cache memories that hold blocks of the most recently referenced instructions and data items.

程序員應該理解局部性原理，因為一般而言，有良好局部性的程序比局部性差的程序運行得更快。現代計算機系統的各個層次，從硬件到操作系統、再到應用程序，它們的設計都利用了局部性。在硬件層，局部性原理允許計算機設計者通過引人稱為高速緩存存儲器的小而快速的存儲器來保存最近被引用的指令和數據項，從而提高對主存的訪問速度。

At the operating system level, the principle of locality allows the system to use the main memory as a cache of the most recently referenced chunks of the virtual address space. Similarly, the operating system uses main memory to cache the most recently used disk blocks in the disk file system. The principle of locality also plays a crucial role in the design of application programs. For example,Web browsers exploit temporal locality by caching recently referenced documents on a local disk. High-volumeWeb servers hold recently requested documents in front-end disk caches that satisfy requests for these documents without requiring any intervention from the server.

在操作系統級，局部性原理允許系統使用主存作為虛擬地址空間最近被引用塊的高速緩存。類似地，操作系統用主存來緩存磁盤文件系統中最近被使用的磁盤塊。局部性原理在應用程序的設計中也扮演著重要的角色。例如，Web 瀏覽器將最近被弓]用的文檔放在本地磁盤上，利用的就是時間局部性。容量的Web 服務器將最近被請求的文檔放在前端磁盤高速緩存中，這些緩存能滿足對這些文檔的請求，而不需要服務器的任何干預。

Programs that repeatedly reference the same variables enjoy good temporal locality.

重復引用相同變量的程序有良好的時間局部性。

For programs with stride-k reference patterns, the smaller the stride, the better the spatial locality. Programs with stride-1 reference patterns have good spatial locality. Programs that hop around memory with large strides have poor spatial locality.

對于具有步長為k的引用模式的程序，步長越小，空間局部性越好。具有步長為 1 的引用模式的程序有很好的空間局部性。在內存中以大步長跳來跳去的程序空間局部性會很差。

. Loops have good temporal and spatial locality with respect to instruction fetches. The smaller the loop body and the greater the number of loop iterations, the better the locality.

對于取指令來說，循環有很好的時間和空間局部性。循環體越小，循環迭代次數越多，局部性越好。

// C語言是以行優先順序存儲數組。
#define COL 12
int sumArrRows(int(*a)[COL],int r)
{
    int i,j,sum=0;
    for(i=0;i<r;i++)
        for(j=0;j<COL;j++)
            sum += a[i][j]; // 逐行處理，具有良好的局部性
    return sum;
}
int sumArrCols(int(*a)[COL],int r)
{
    int i,j,sum=0;
    for(i=0;i<r;i++)
        for(j=0;j<COL;j++)
            sum += a[j][i]; // 逐列處理，空間局部性差
    return sum;
}

2 存儲器的層次結構和傳送塊

Organizing memory systems, usually, adopts the technology , known as the memory hierarchy. In general, the storage devices get slower, cheaper, and larger as we move from higher to lower levels.

組織內存系統通常采用被稱為內存層次結構的技術。一般來說，隨著我們從更高的級別移動到更低的級別，存儲設備變得更慢、更便宜、更大。

In general, a cache (pronounced “cash”) is a small, fast storage device that acts as a staging area for the data objects stored in a larger, slower device. The process of using a cache is known as caching (pronounced “cashing”).

一般而言，高速緩存(cache, 讀作“cash”)是一個小而快速的存儲設備，它作為存儲在更大、也更慢的設備中的數據對象的緩沖區域。使用高速緩存的過程稱為緩存（caching）。

The central idea of a memory hierarchy is that for each k, the faster and smaller storage device at level k serves as a cache for the larger and slower storage device at level k + 1. In other words, each level in the hierarchy caches data objects from the next lower level. For example, the local disk serves as a cache for files (such as Web pages) retrieved from remote disks over the network, the main memory serves as a cache for data on the local disks, and so on, until we get to the smallest cache of all, the set of CPU registers.

存儲器層次結構的中心思想是，對于每個k，位于k層的更快更小的存儲設備作為位于k+1層的更大更慢的存儲設備的緩存。換句話說，層次結構中的每一層都緩存來自較低一層的數據對象。例如，本地磁盤作為通過網絡從遠程磁盤取出的文件（例如Web 頁面）的緩存，主存作為本地磁盤上數據的緩存，依此類推，直到最小的緩存—— CPU 寄存器組。

Data are always copied back and forth between level k and level k + 1 in block-size transfer units. It is important to realize that while the block size is fixed between any particular pair of adjacent levels in the hierarchy, other pairs of levels can have different block sizes.

數據總是以塊大小為傳送單元（transfer unit)，在第k層和第k + 1 層之間來回復制。雖然在層次結構中任何一對相鄰的層次之間塊大小是固定的，但是其他的層次對之間可以有不同的塊大小。

Figure below shows the general concept of caching in a memory hierarchy. The storage at level k + 1 is partitioned into contiguous chunks of data objects called blocks. Each block has a unique address or name that distinguishes it from other blocks. Blocks can be either fixed size (the usual case) or variable size (e. g. , the remote HTML files stored on Web servers). For example, the level k + 1 storage in Figure below is partitioned into 16 fixed-size blocks, numbered 0 to 15.

下圖展示了存儲器層次結構中緩存的一般性概念。第 k+1 層的存儲器被劃分成連續的數據對象組塊, 稱為塊。每個塊都有一個唯一的地址或名字，使之區別于其他的塊。塊可以是固定大小的（通常是這樣的）， 也可以是可變大小的（例如存儲在Web 服務器上的遠程HTML 文件）。例如，下圖中第k+1 層存儲器被劃分成16 個大小固定的塊，編號為0~15。

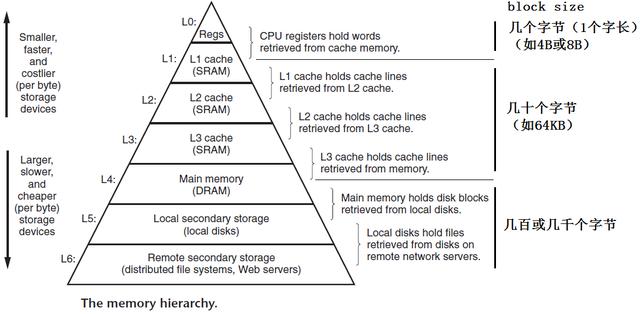

存儲層次結構：

3 編寫局部性良好的程序

Programs that repeatedly reference the same variables enjoy good temporal locality.

重復引用相同變量的程序有良好的時間局部性。

For programs with stride-k reference patterns, the smaller the stride, the better the spatial locality. Programs with stride-1 reference patterns have good spatial locality. Programs that hop around memory with large strides have poor spatial locality.

對于具有步長為k的引用模式的程序，步長越小，空間局部性越好。具有步長為1的引用模式的程序有很好的空間局部性。在內存中以大步長跳來跳去的程序空間局部性會很差。

. Loops have good temporal and spatial locality with respect to instruction fetches. The smaller the loop body and the greater the number of loop iterations, the better the locality.

對于取指令來說，循環有好的時間和空間局部性。循環體越小，循環迭代次數越多，局部性越好。

4 緩沖

4.1 緩存是存儲分層的概念，在存儲器層次結構中，高一層的存儲設備是低一層的緩存。

4.2 緩沖是內存的一塊區域，可以分為兩類：

4.2.1 用于IO的一塊臨時內存存儲區域，用于IO數據的批量處理。

#include <stdio.h>

int main()
{
   char buf[BUFSIZ];

   setbuf(stdout, buf); // 以字符數組buf做為輸出緩沖區，其大小為BUFSIZ
   puts("This is runoob");

   fflush(stdout);

   int a;
   scanf("%d",&a);
   fflush(stdin);   // The POSIX and C standards explicitly state that
                    // using fflush on an input stream is undefined behavior
   getchar();
   return(0);
}

BUFSIZ是STDIO.H中定義的一個宏：

#if     defined(_M_MPPC)
#define BUFSIZ  4096
#else  /* defined (_M_MPPC) */
#define BUFSIZ  512
#endif /* defined (_M_MPPC) */

4.2.2 在棧上定義的一個局部字符數組，也就是函數內定義的字符數組。

如果字符數組是通過輸入來賦值，而輸入的長度超過字符數組的長度時，則會出現所謂緩沖區溢出的概念，如果溢出覆蓋了函數棧幀的返回地址，而覆蓋返回地址的字符是經過特殊設計的，就有可出現所謂緩沖區溢出攻擊的情況。

void bufOverflow()
{
    char buf[64];
    gets(buf); // here is the stack buffer overflow bug
    return;
}

更多細節請參考：C｜輸入輸出緩沖區與緩沖區溢出
